CFD Modeling for Pharmaceutical Surgery Suites

Pharmaceutical Surgery Suite

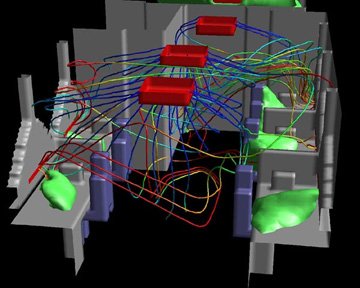

This suite is designed for surgical procedures on small animals. The main operating room can accommodate five surgeons simultaneously using Isoflurane anesthesia gas. Each surgical station is fitted with a back draft table, overhead radial diffusers and heated table tops. Both iso-surfaces of Isoflurane (2 ppm) and particle tracks are shown in this figure featuring CFD modeling done for the suite.
